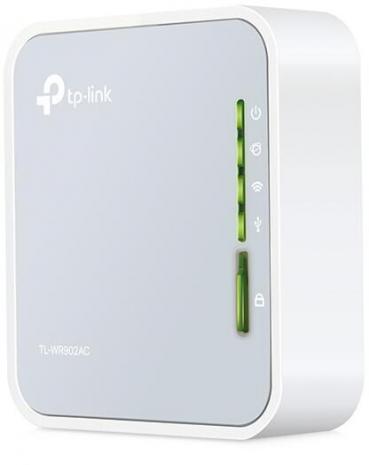

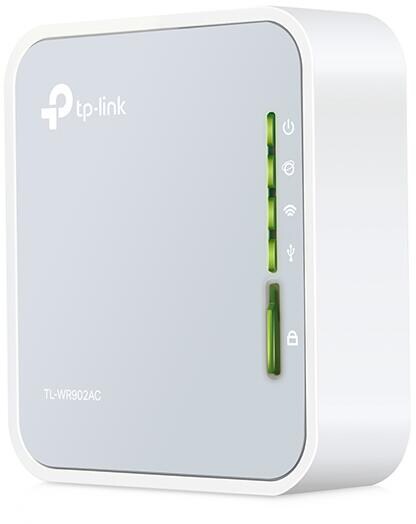

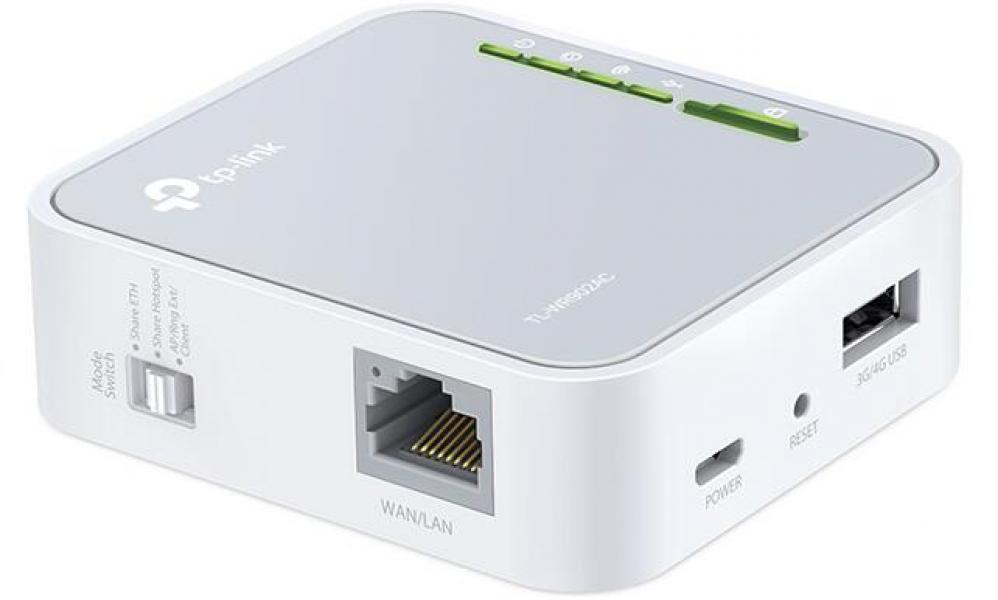

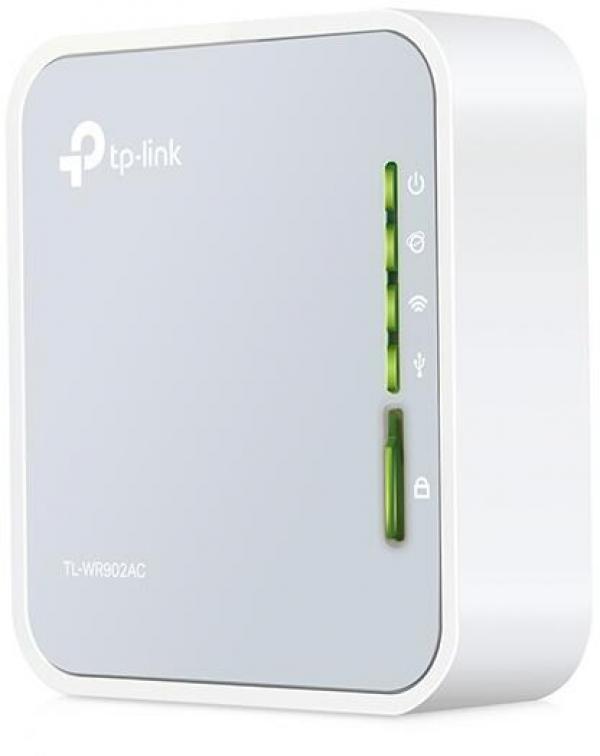

TP-Link Tragbarer AC750-WLAN-Router (TL-WR902AC)

• Kompaktes Design ? Optimal für unterwegs; WLAN über LAN-Kabel, 3G/4G-USB-Surfstick oder WISP
• Dualband-WLAN-AC-Standard ? Garantiert schnelle Verbindungen für ruckelfreies HD-Videostreaming auf allen Geräten
• Ein Schalter für mehrere Modi ? Perfekt für zu Hause, im Hotelzimmer oder für unterwegs
• Flexibel speisbar ? Über einen USB-Adapter, eine Powerbank oder ein Notebook
• Vielseitiger USB-Einsatz ? Für den Datenaustausch oder ein kompatibles 3G/4G-Modem geeignet

Standards

• Wi-Fi 5
• IEEE 802.11ac/n/a 5 GHz
• IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds

• AC750
• 5 GHz: 433 Mbps (802.11ac)
• 2.4 GHz: 300 Mbps (802.11n)

WiFi Range

• 2 Bedroom Houses
• 2× Fixed Antennas (Internal)

WiFi Capacity

• Medium
• Dual-Band
• Allocate devices to different bands for optimal performance

Working Modes

• Router Mode
• Access Point Mode
• Range Extender Mode
• Client Mode
• Hotspot Mode (WISP Mode)

Network Security

• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway

Guest Network

• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

WiFi Encryption

• WEP
• WPA
• WPA2

Processor

• Single-Core CPU

Ethernet Ports

• 1× 10/100 Mbps WAN/LAN Port

USB Support

• 1× USB 2.0 Port
• Supported Partition Formats:
• NTFS, FAT32
• Supported Functions:
• FTP Server
• Media Server

Buttons

• Reset Button
• Mode Switch

Power

• 5 V ? 2 A

Protocols

• IPv4
• IPv6

Parental Controls

• URL Filtering
• Time Controls

WAN Types

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP
• Quality of Service: QoS by Device

NAT Forwarding

• Virtual Server
• Port Forwarding
• Port Triggering
• DMZ
• UPnP
• IPTV: IGMP Proxy

DHCP

• Address Reservation
• DHCP Client List
• Server

DDNS

• NO-IP
• Comex
• DynDNS

Management

• Tether App
• Webpage
• Check Web Emulator>

System Requirements

• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)

Certifications

• FCCCE, RoHS

Environment

• Operating Temperature: 0?~40? (32? ~104?)
• Storage Temperature: -40?~70? (-40? ~158?)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

WiFi Transmission Power

• <20dBm(2.4GHz)
• <23dBm(5GHz)

WiFi Reception Sensitivity

• 11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm;
• 11ac VHT40 MCS9: -65.5dBm; 11ac VHT80 MCS9:
• 61.5dBm
• 2.4GHz:
• 11g 54M: -76dBm11n; HT20 MCS7: -74dBm;
• 11n HT40 MCS7: -71dBm

Dimensions (W×D×H)

• 2.91 × 2.64 × 0.87 in
• (74 × 67 × 22mm)

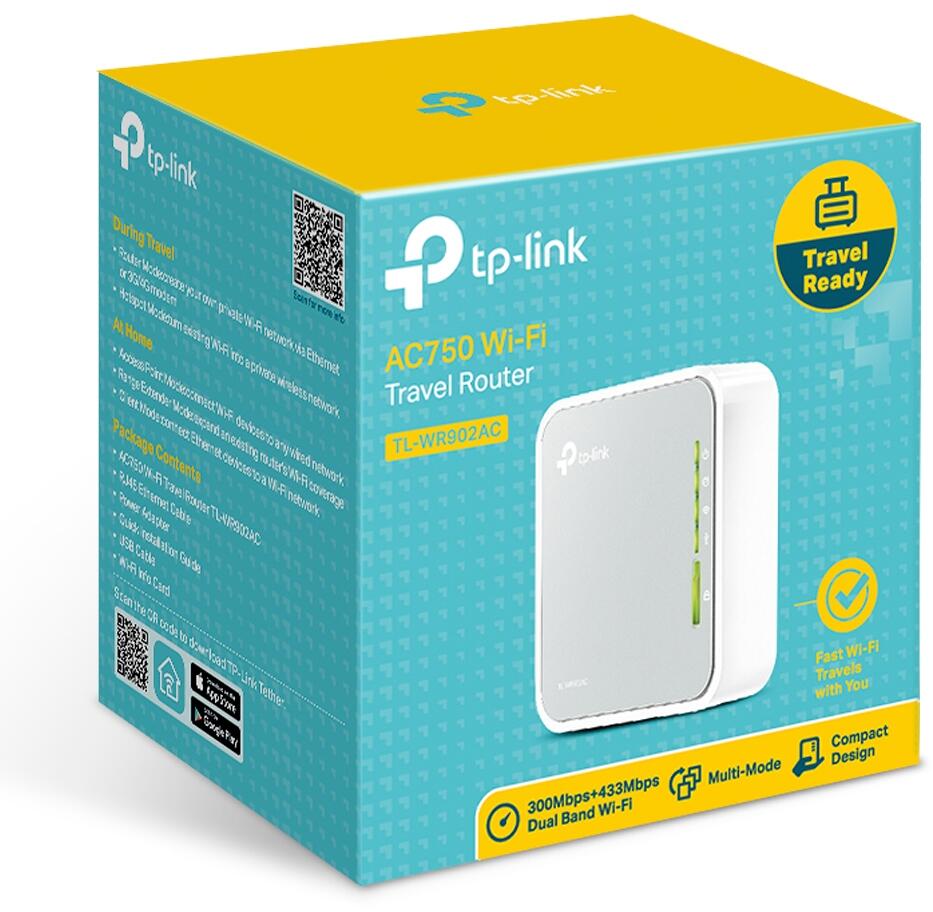

Package Contents

• Wi-Fi Router TL-WR902AC
• RJ45 Ethernet Cable
• Quick Installation Guide
