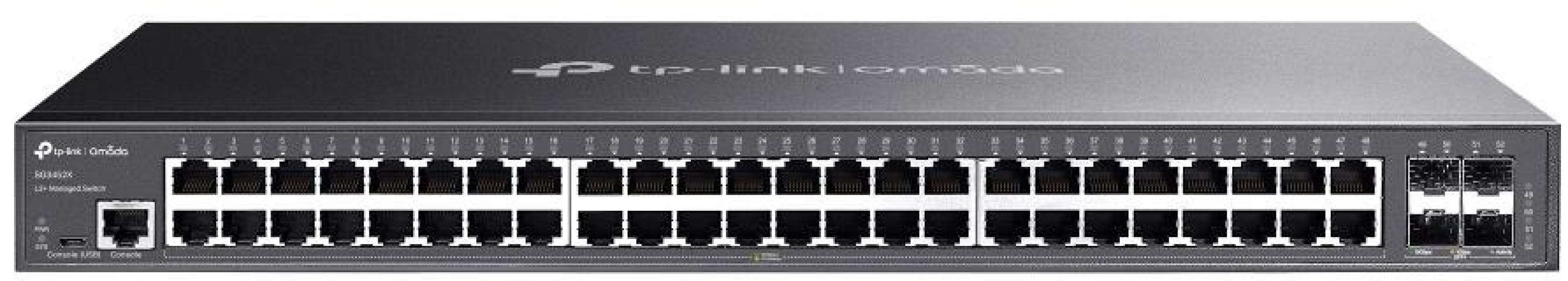

TP-Link Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots (SG3452X)

• 4× 10 Gbps SFP+-Steckplätze ermöglichen Konnektivität mit hoher Bandbreite
• 48× Gigabit RJ45-Anschlüsse
• 176 Gbit/s Switching-Kapazität
• Zentralisierte Cloud-Verwaltung über das Web oder die Omada App?
• Eigenständige Verwaltung über Web, CLI, SNMP und RMON
• Statisches Routing hilft, den internen Datenverkehr für höhere Effizienz zu routen
• VLAN, ACL, QoS, IGMP Snooping, OAM und DDM
• ERPS unterstützt schnellen Schutz und Wiederherstellung in einer Ringtopologie
• Lüfterloses Design für leisen Betrieb
• Strapazierfähiges Metallgehäuse und rackmountfähiges Design

Technische Daten:

Hardware Funktionen:

• 48× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
• 4× 10G SFP+ Slots
• 1× RJ45 Console Port
• 1× Micro-USB Console Port
• Anzahl Lüfter: Fanless
• Physischer Diebstahlschutz: ja

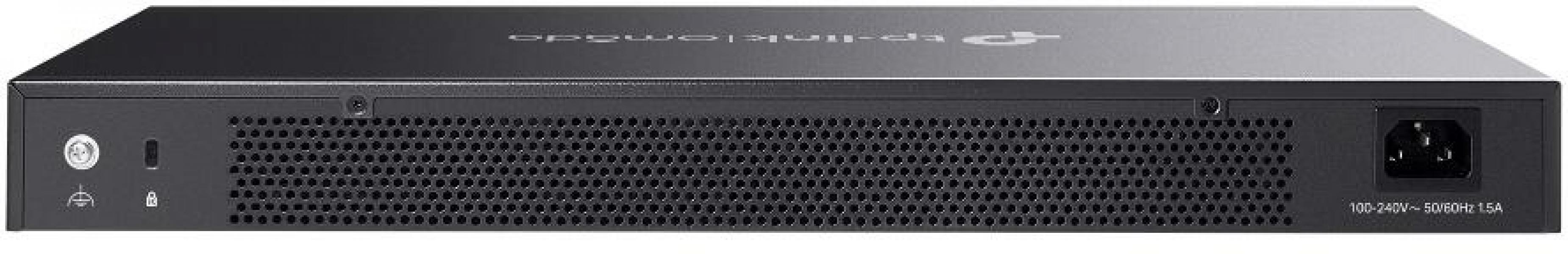

• Spannungsversorgung: 100-240 V AC~50/60 Hz
• Abmessungen (B*T*H): 17.3×8.7×1.7 in (440×220×44 mm)
• Montage: Rack Mountable
• Maximale Leistungsaufnahme: 32.72 W (110V/60Hz)
• Maximale Wärmeabgabe: 111.65 BTU/h (110 V/60 Hz)
• Switchingkapazität: 176 Gbps
• Paketweiterleitungsrate: 130.94 Mpps
• MAC-Adresstabelle: 16 K
• Paketpufferspeicher: 12 Mbit
• Jumbo-Frames: 9 KB

Quality of Service

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
• Bandwidth Control: Port/Flow-based Rating Limiting
• Smoother Performance
• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

Layer2- und Layer2+-Funktionen

• 128 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 48 IPv4/IPv6 Static Routes
• Static ARP: 128 static entries
• 512 ARP Entries
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring

Layer2-Multicast

• Supports 1000 (IPv4, IPv6) IGMP groups
• IGMP Snooping
• IGMP Authentication
• Multicast VLAN Registration (MVR)
• MLD Snooping
• Multicast Filtering: 256 profiles and 16 entries per profile

Erweiterte Funktionen

• Automatic Device Discovery?
• Batch Configuration?
• Batch Firmware Upgrading?
• Intelligent Network Monitoring?
• Abnormal Event Warnings?
• Unified Configuration?
• Reboot Schedule?

ISP Features*:

• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• ERPS
• 802.3ah Ethernet Link OAM
• DDM
• sFlow

VLAN

• VLAN Group: Max 4K VLAN Groups
• 802.1q Tagged VLAN
• MAC VLAN: 30 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN: VLAN Mapping, VLAN Replace
• Voice VLAN

Zugriffskontrollliste

• Time-based ACL
• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy: Mirroring, Redirect, Rate Limit, QoS Remark
• ACL apply to Port/VLAN

Sicherheit

• IP-MAC-Port Binding
• 512 Entries
• DHCP Snooping
• ARP Inspection
• IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding
• 512 Entries
• DHCPv6 Snooping
• ND Detection
• ND Snooping
• IPv6 Source Guard: 100 Entries
• DoS Defend
• DHCP Filter
• Static/Dynamic Port Security: Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
• 802.1X
• Port-based authentication
• Mac-base authentication
• VLAN Assignment
• MAB
• Guest VLAN
• Radius authentication and accountability support
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control

IPv6

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs

• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
• Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

Verpackungsinhalt

• SG3452X Switch
• Power Cord
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Systemanforderungen

• Microsoft® Windows® 98SE, NT, 2000, XP, Vista? or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Umgebung

• Operating Temperature: 0?45 ? (32?113 ?);
• Storage Temperature: -40?70 ? (-40?158 ?)
• Operating Humidity: 10?90% RH non-condensing
• Storage Humidity: 5?90% RH non-condensing
