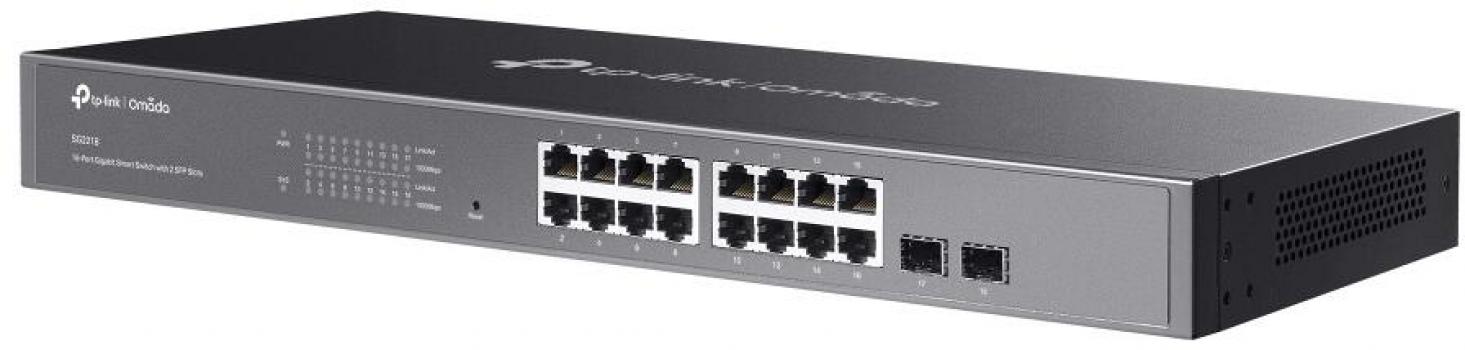

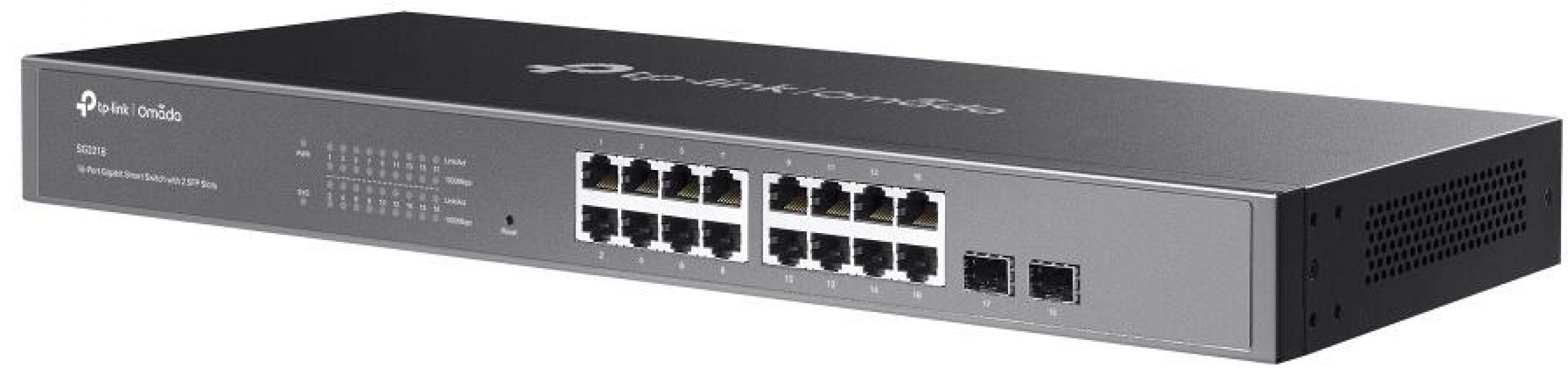

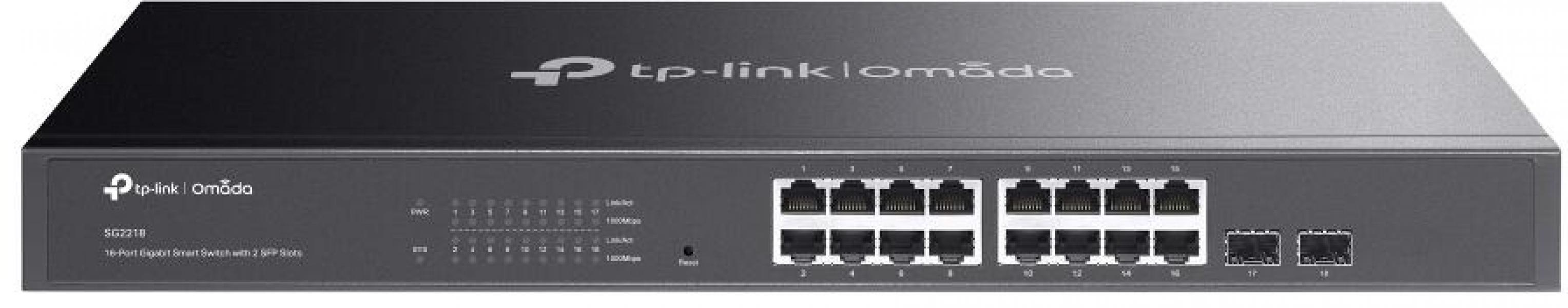

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots (SG2218)

TP-Link Omada 16-Port Gigabit Smart Switch with 2 SFP Slots

• 16× Gigabit RJ45-Ports und 2× Gigabit SFP-Steckplätze
• Zentralisierte Cloud-Verwaltung über das Web oder die Omada App?
• Eigenständige Verwaltung über Web, CLI, SNMP und RMON
• Statisches Routing hilft, den internen Datenverkehr für höhere Effizienz zu routen
• VLAN, ACL, QoS und IGMP Snooping
• Lüfterloses Design für leisen Betrieb
• Strapazierfähiges Metallgehäuse und rackmountfähiges Design

Hardware Funktionen:

Schnittstelle

• 16× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
• 2× Gigabit SFP Slots
• Anzahl Lüfter: Fanless
• Physischer Diebstahlschutz: ja

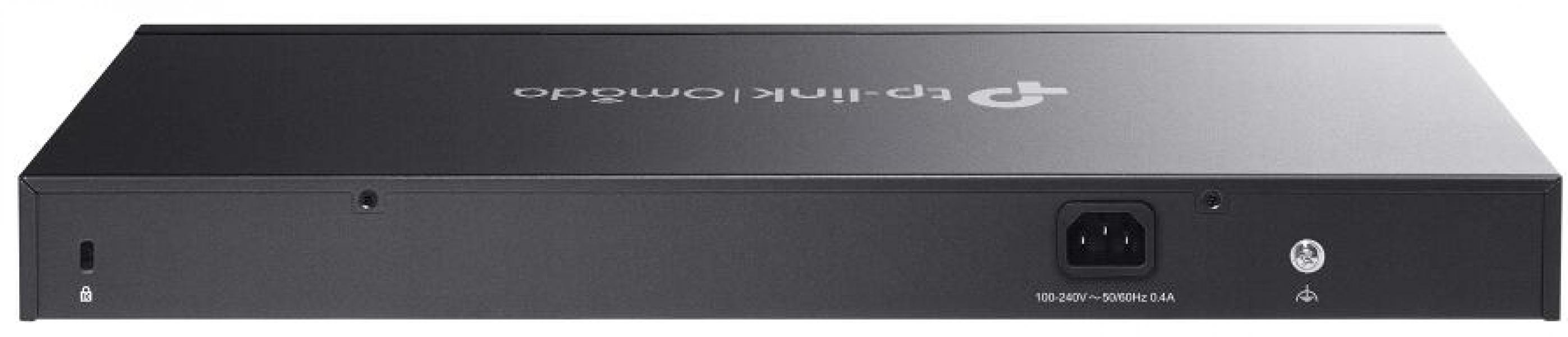

• Spannungsversorgung: 100-240 V AC~50/60 Hz
• Abmessungen (B*T*H): 440×180×44 mm
• Montage: Rack Mountable
• Maximale Leistungsaufnahme: 12.3 W (220 V/50 Hz)
• Maximale Wärmeabgabe: 41.97 BTU/hr (220 V/50 Hz)

Performance

• Switchingkapazität: 36 Gbps
• Paketweiterleitungsrate: 26.8 Mpps
• MAC-Adresstabelle: 8 K
• Jumbo-Frames: 9 KB

Software- Funktionen:

Qualität der Dienste

• 8 priority queues
• 802.1p CoS/DSCP priority
• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin)
• ? Queue Weight Config
• Bandwidth Control: Port/Flow-based Rating Limiting
• Smoother Performance
• Storm Control
• Multiple Control Modes(kbps/ratio)
• Broadcast/Multicast/Unknown-Unicast Control

Layer2- und Layer2+-Funktionen

• 16 IP Interfaces: Support IPv4/IPv6 Interface
• Static Routing: 32 IPv4/IPv6 Static Routes
• Proxy ARP
• Gratuitous ARP
• DHCP Server
• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
• DHCP L2 Relay
• Link Aggregation
• Spanning Tree Protocol
• Loopback Detection
• 802.3x Flow Control
• Mirroring
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED

Layer2-Multicast

• Supports 511 (IPv4, IPv6) IGMP groups
• IGMP Snooping
• Multicast VLAN Registration (MVR)
• Multicast Filtering: 256 profiles and 16 entries per profile

Erweiterte Funktionen

• Automatic Device Discovery?
• Batch Configuration?
• Batch Firmware Upgrading?
• Intelligent Network Monitoring?
• Abnormal Event Warnings?
• Unified Configuration?
• Reboot Schedule?

VLAN

• VLAN Group: Max 4K VLAN Groups
• 802.1Q Tagged VLAN
• MAC VLAN: 12 Entries
• Protocol VLAN
• GVRP
• Voice VLAN

Zugriffskontrollliste

• Time-based ACL
• Support up to 230 entries
• MAC ACL
• IP ACL
• Combined ACL
• Rule Operation: Permit/Deny
• Packet Content ACL
• IPv6 ACL
• Policy: Mirroring, Redirect, Rate Limit, QoS Remark
• ACL applies to Port/VLAN

Sicherheit

• IP-MAC-Port Binding
• AAA
• 802.1X
• Port-based authentication
• MAC (Host) based authentication
• Authentication Method includes PAP/EAP-MD5
• MAB
• Guest VLAN
• Support Radius authentication and accountability
• IP/IPv6-MAC Binding
• 512 Binding Entries
• DHCP Snooping
• DHCPv6 Snooping
• ARP Inspection
• ND Detection
• IP Source Guard
• 253 Entries
• Source IP+Source MAC
• IPv6 Source Guard
• 183 Entries
• Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
• Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control

IPv6

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 Interface
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP)
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs

• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB
• RMON MIB(RFC1757, rmon 1,2,3,9)

Verwaltung:

• Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
• Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

Sonstiges:

• Zertifizierung: CEFCC, RoHS

Verpackungsinhalt

• SG2218 Switch
• Power Cords
• Quick Installation Guide
• Rackmount Kit
• Rubber Feet

Umgebung

• Operating Temperature: 0?40 ? (32?104 ?);
• Storage Temperature: -40?70 ? (-40?158 ?)
• Operating Humidity: 10?90% RH non-condensing
• Storage Humidity: 5?90% RH non-condensing

Systemanforderungen

• Microsoft® Windows® 98SE, NT, 2000, XP, Vista? or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
