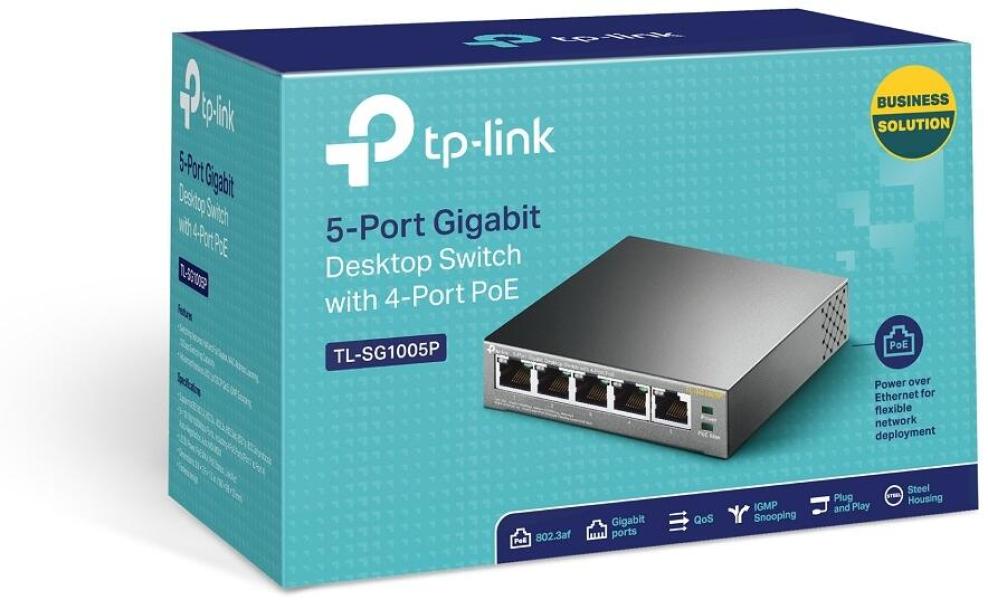

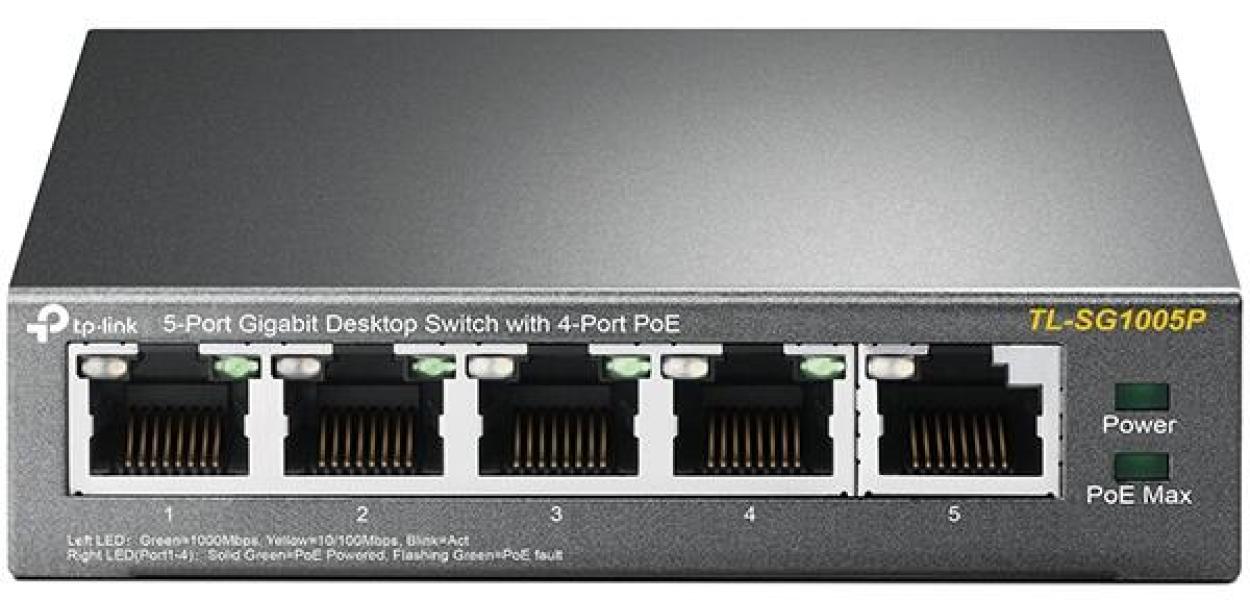

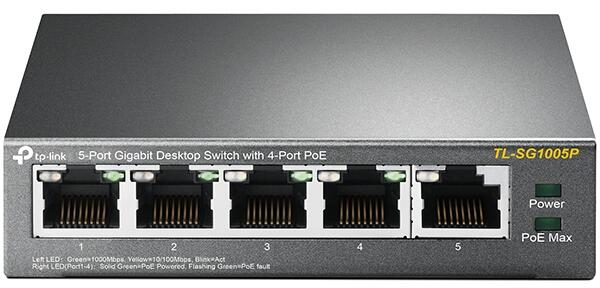

TP-Link 5-Port-10/100/1000Mbit/s-Desktop-Switch mit 4 PoE-Ports
- 5 x 10/100/1000Mbit/s-RJ45-Ports
- Vier PoE-Ports, Datenübertragung und Stromversorgung nur über ein Kabel
- Speist IEEE-802.3af-Geräte und erweitert Ihr bestehendes Netz zu Hause oder im Büro
- Reibungsloser Datentransfer dank 802.1p/DSCP QoS
- Unterstützt PoE mit bis zu 30W je PoE-Port
- PoE-Gesamtleistung von 65W
- Keine Konfiguration oder Installation notwendig
Hardware Funktionen:
Schnittstelle
- 5 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation/AUTO MDI/MDIX
Kabel
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100? STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100? STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100? STP (maximum 100m)
Anzahl Lüfter
Externe Spannungsversorgung
- External Power Adapter(Output: 48VDC / 1.25A)
Paketweiterleitungsrate
PoE+-Ports
- Standard: 802.3 af/at konform
- PoE-Ports: Ports 1?4
- Power Supply: 56 W
MAC-Adresstabelle
Jumbo-Frames
Switchingkapazität
Abmessungen (B*T*H)
Maximale Leistungsaufnahme
- 3.95W(220/50Hz. no PD connected)
- 64.44W(220/50Hz. with 56W PD connected)
Maximale Wärmeabgabe
- 13.48BTU/h(no PD connected)
- 219.87BTU/h(with 56W PD connected)
Erweiterte Funktionen
- Compatible With IEEE 802.3af Compliant PDs
- Priority Function
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
Übertragungsmethode
Zertifizierung
Verpackungsinhalt
- TL-SG1005P
- Netzteil
- Installationsanleitung
Umgebung
- Operating Temperature: 0?- 40°C
- Storage Temperature: -40?-70?
- Operating Humidity: 10%-90% RH non-condensing
- Storage Humidity: 5%-90% RH non-condensing
| Produkttyp | Netzwerk-Switch |
| Ausführung | 5-Port |
| POE | ja |
