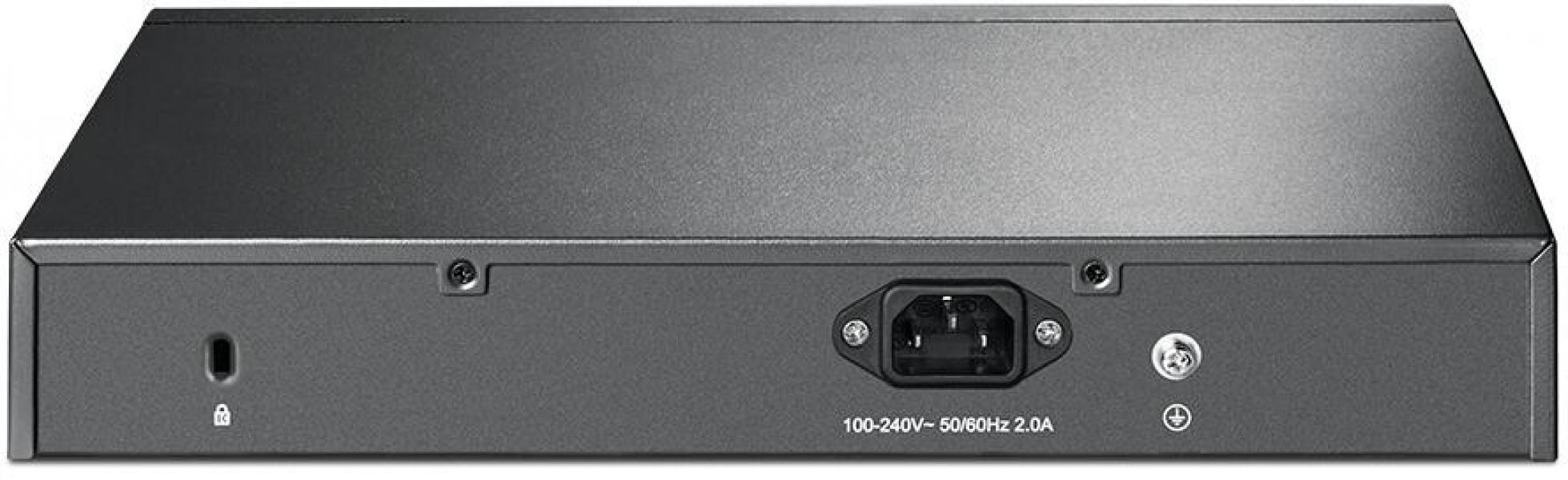

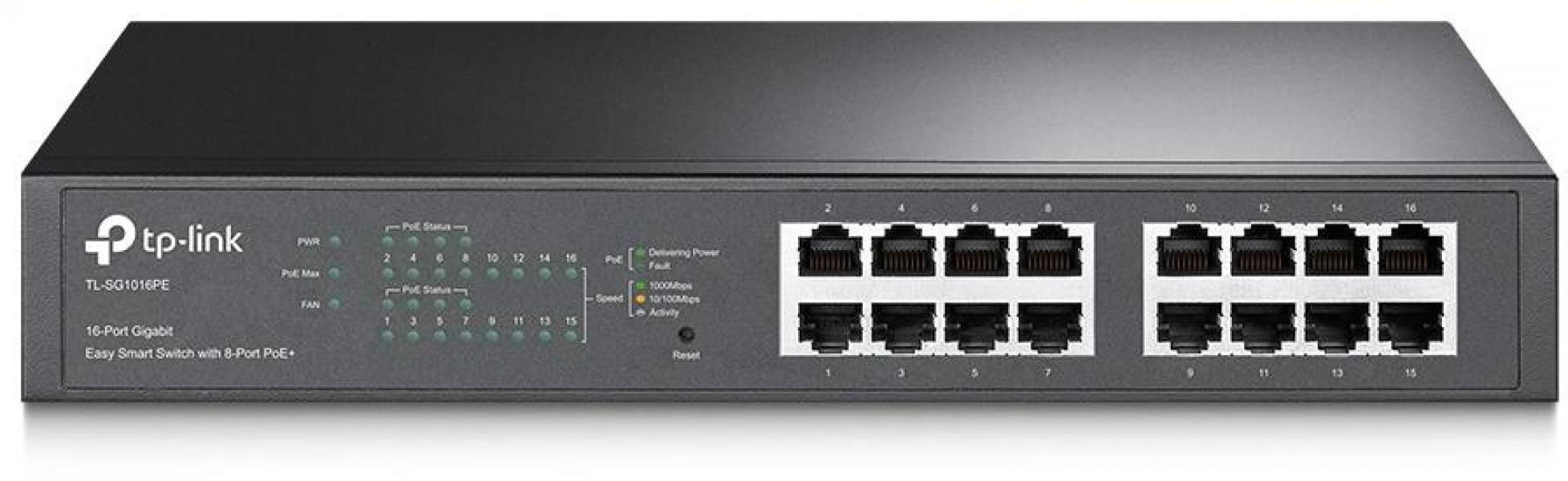

TP-Link 16-Port-Gigabit-Easy-Smart-PoE-Switch mit 8 PoE+-Ports
- 16 10/100/1000Mbit/s-RJ45-Ports
- 8 PoE+-Ports, die Daten und Energie über ein einziges Kabel übertragen können
- Speist IEEE802.3af/at-kompatiblen Geräte
- Einfache Einrichtung, Plug and Play
- Konfigurierbar über Weboberfläche und Konfigurationstool
- Mit einem PoE-Gesamtleistungsbudget von 150 W, bis zu 30 W pro Anschluss
- Automatischer Neustart Ihrer ausgefallenen oder nicht reagierenden PoE-betriebenen Geräte mit PoE Auto Recovery
Hardware Funktionen:
Standards und Protokolle
- IEEE802.3
- IEEE802.3u
- IEEE802.3ab
- IEEE802.3x
- IEEE802.1q
- IEEE802.1p
Schnittstelle
- 16 10/100/1000Mbit/s-Ethernet-Ports, alle mit Autoabstimmung und Auto-MDI/MDIX
Kabel
- 10BASE-T: UTP-Kategorien 3, 4, 5 (maximal 100m)
- EIA/TIA-568 100? STP (maximal 100m)
- 100BASE-TX: UTP-Kategorien 5, 5e (maximal 100m)
- EIA/TIA-568 100? STP (maximal 100m)
- 1000BASE-T: UTP-Kategorien 6 oder höher (maximal 100m)
- EIA/TIA-568 100? STP (maximal 100m)
Anzahl Lüfter
Spannungsversorgung
- 100..240V/50..60Hz Wechselspannung
PoE+-Ports
- Standard: IEEE802.3at
- PoE-Ports: Ports 1 bis 8
- PoE-Gesamtleistung: 110W
Abmessungen (B*T*H)
Maximale Leistungsaufnahme
- 14.72W (110V/60Hz with no PD connected)
- 131.42W (110V/60Hz with 110W PD connected)
Maximale Wärmeabgabe
- 50.22 BTU/h (with no PD connected)
- 448.41 BTU/h (with 110W PD connected)
Performance
- Switchingkapazität: 32 Gbps
- Paketweiterleitungsrate: 23,8 Mpps
- MAC-Adresstabelle: 8 K
- Paketpufferspeicher: 4,1 Mb
- Jumbo-Frames: 9 KB
Software- Funktionen:
Quality of Service
- Portbasierende/802.1p-/DSCP-Priorität
- 4 Prioritätswarteschlangen
- Datenratenbegrenzung
- Storm-Control
Layer2-Funktionen
- IGMP Snooping V1/V2/V3
- Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
VLAN
- Bis zu 128 VLANs aus 4k VLAN-IDs
- MTU-/Port-/Tag-VLAN
Übertragungsmethode
Zertifizierung
Verpackungsinhalt
- TL-SG1016PE
- Spannungskabel
- Installationsanleitung
- CD
- Rackmontagesatz
- Gummifüßchen
Systemanforderungen
- Microsoft® Windows® (für das Utility)
Umgebung
- Operating Temperature: 0?- 40°C
- Storage Temperature: -40?-70?
- Operating Humidity: 10%-90% RH non-condensing
- Storage Humidity: 5%-90% RH non-condensing
| Produkttyp | Netzwerk-Switch |
| Ausführung | 16-Port |
| POE | ja |
