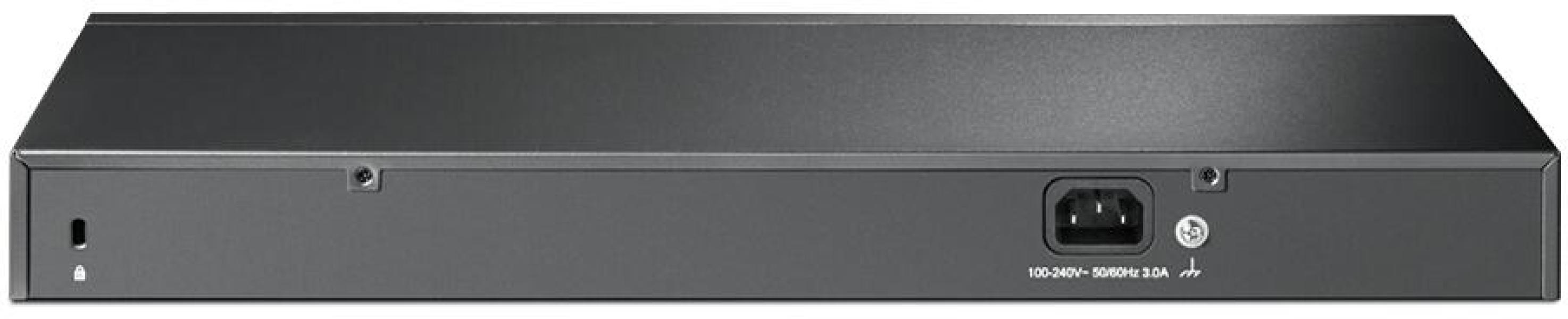

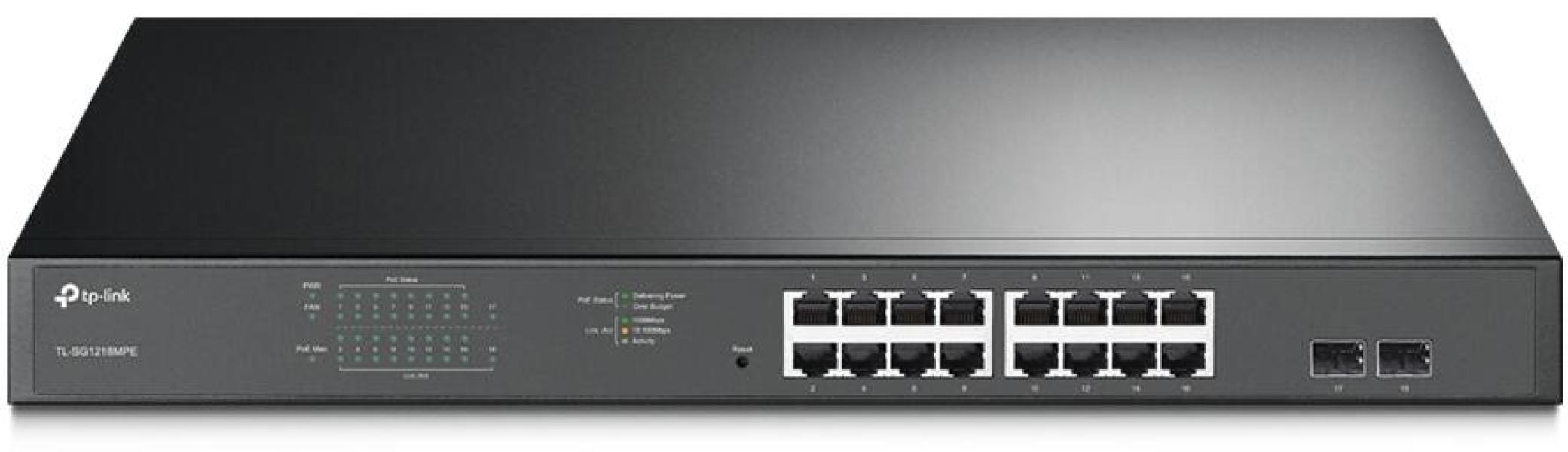

TP-Link 16-Port-Gigabit-Easy-Smart-PoE+-Switch mit 2 SFP-Slots
- 16 10/100/1000Mbit/s-RJ45-PoE+-Switch mit 2 SFP-Slots
- PoE-Leistung für bis zu 192W, bietet eine hohe Vielfalt an Einsatzmöglichkeiten, idial für KMUs und Videoüberwachungssysteme
- Die Port-Priorität garantiert die Qualität von wichtigen Übertragungen wie von Videoüberwachungssysteme
- Die intelligente PoE-Versorgung schützt den der Switch vor einer Überspannung.
- QoS ermöglicht ein reibungsfreies Surfen im Internet und IGMP Snooping optimiert IPTV Übertragungen.
Hardware Funktionen:
Standards und Protokolle
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Schnittstelle
- 16 10/100/1000 Mbps RJ45 Ports, (Auto Negotiation/Auto MDI/MDIX), 2 Gigabit SFP Ports
Kabel
- 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100? STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100? STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100? STP (maximum 100m)
- 1000BASE-X MMF, SMF
Anzahl Lüfter
Spannungsversorgung
PoE+-Ports
- Standard: 802.3at/802.3af compliant
- PoE+ Ports: 16 Ports
- Power Supply: 192W
Abmessungen (B*T*H)
Maximale Leistungsaufnahme
- 18.73 W (220/50Hz. no PD connected)
- 217.22 W (220/50Hz. with 192W PD connected)
Maximale Wärmeabgabe
- 63.89 BTU/h (no PD connected)
- 741.15 BTU/h (with 192W PD connected)
Performance
- Switchingkapazität: 36 Gbps
- Paketweiterleitungsrate: 23,8 Mpps
- MAC-Adresstabelle: 8 K
- Paketpufferspeicher: 4,1 Mb
- Jumbo-Frames: 9 KB
Software- Funktionen:
Quality of Service
- Support Port-based 802.1p/DSCP priority
- Support 4 priority queues
- Rate Limit
- Storm Control
Layer2-Funktionen
- IGMP Snooping V1/V2/V3
- Static Link Aggregation
- Port Mirroring
- Cable Diagnostics
- Loop Prevention
VLAN
- Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
- MTU/Port/Tag VLAN
Verpackungsinhalt
- TL-SG1218MPE
- Power Cord
- Installation Guide
- Rubber Feet
- Resource CD
- Rackmount Kit
Umgebung
- Operating Temperature: 0?- 50°C (32°F~122°F)
- Storage Temperature: -40?-70? (-40?~158?)
- Operating Humidity: 10%-90% RH non-condensing
- Storage Humidity: 5%-90% RH non-condensing
| Produkttyp | Netzwerk-Switch |
| Ausführung | 16-Port |
| POE | ja |
