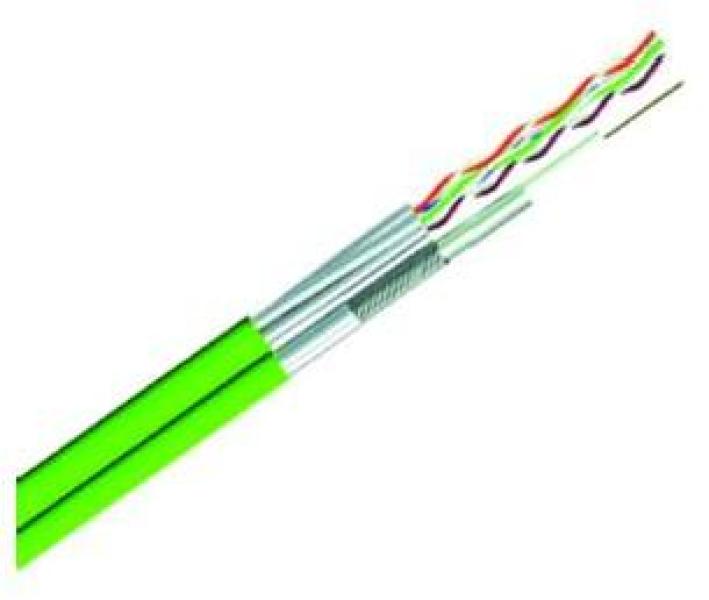

Kathrein LCH 120/250m Hydridkabel, Koax/LAN, Cat7 (215500005)
Kathrein LCH 120/250m Hydridkabel, Koax/LAN, Cat7 (215500005)
Technische Daten:
- Typ LCH 120/250m
- Innenleiter CAT7 8 x 0.5 (mm)
- Isolation CAT7 Kunststoffbeschichtetes Aluminium 100%
- Außenleiter KOAX Al/pet-Folie - CuSn-Geflecht
- Außenmantel LSZH/LS0H - RAL 2003 Orange, 7.7 mm
- Biegeradius > 65 (mm)
- Dämpfung bei 10 MHz typisch CAT7 6.3 (dB/100m)
- Dämpfung bei 100 MHz typisch CAT7 21.3 (dB/100 m)
- Dämpfung bei 250 MHz typisch CAT7 35.7 (dB/100 m)
- Dämpfung bei 500 MHz typisch CAT7 49.0 (dB/100 m)
- Dämpfung bei 600 MHz typisch CAT7 58.0 (dB/100 m)
- Dämpfung bei 5 MHz typisch KOAX (dB/100 m)
- Dämpfung bei 50 MHz typisch KOAX (dB/100 m)
- Dämpfung bei 450 MHz typisch KOAX (dB/100 m)
- Dämpfung bei 860 MHz typisch KOAX (dB/100 m)
- Dämpfung bei 1200 MHz typisch KOAX (dB/110m)
- Dämpfung bei 2150 MHz typisch KOAX (dB/100m)
- Rückflussdämpfung 862-1000 MHz ? 23 (dB)
- Rückflussdämpfung 1000-2150 MHz ? 20 (dB)
- Gleichstromwiderstand 68 (Ohm/km)
- Schirmdämpfung 30-3000 MHz typ. 90 (dB)
- Kopplungswiderstand 5-30 MHz ? 5 (mOhm/m)
- Max. zul. Zugkraft (N)
- Zul. Umgebungstemperatur Inst. -20 bis +60 (°C)
- Verpackung Einwegspule (250 m)
- Gewicht 6 (kg/100 m)
- BauPVO 305/2011 - Brandklasse Euroklasse ??a s1a d1 a1
- Verlegungsbereich Innen
Merkmale:
- Hybrid-Netzwerk-& Koaxialkabel mit Metermarkierung
- Cat 7 U/FTP und Class A
- Bauproduktenverordnung 305/2011 EN 50575 Brandklasse: ??a s1a,d1,a1
- Halogenfrei
- Für Hausinstallation geeignet
Maße:
| Produkttyp | Koaxialkabel |
| Kabellänge [m] | 250 |
